Technical Data:



USED - Like New

Ready to work! Only completed a few hours of work with very light scrap.

Hydraulic Hammer-Pin Extractor


Remote Control

  • Includes tilting ramp operation control
  • Includes feeding roller operation control
  • Includes hammermill shredder ejection gate opening and closure control


Weight and Dimensions

  • Length: 61.00ft
  • Width: 11.50ft
  • Height: 20.00ft
  • Weight: 230,000 lbs


Metal Scrap

Metal cans

Light Metal Scrap

Slightly Pressed Metal Scrap Bales

Car Parts

Sheared Cars

Sheared Metal Scrap Bales

Metal Scrap Bales

Flattened Cars

Entire Cars


Other Materials

CDW

Concrete

Reinforced Concrete

Concrete Railway Sleepers



Mobile Hammermill Shredder

INPUT MATERIALS

Aluminum

AI Cans

Loose AI Scrap

Mixed Light AI Scrap

AI Profiles

AI Pipes

AI Sumps

Slightly Pressed AI Scrap Bales

AI Scrap Bales

AI Engine Blocks


White Goods / Appliances

Small Size White Goods

Medium Size White Goods

Big Size White Goods

FOR SALE

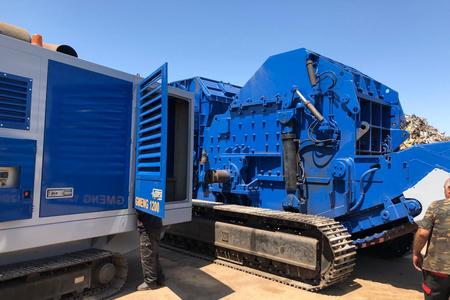

Mobile Power Unit


Undercarriage system


Drive

  • 1200 HP Mitsubishi engine
  • Speed reducer
  • Open circuit hydraulic clutch


Weight and Dimensions

  • Length: 26.50 ft
  • Width: 8.20 ft
  • Height: 11.00 ft
  • 55,000 lbs

Mobile Hammermill Shredder Unit


Undercarriage System


Feeding System
Tilting ramp

  • Width: 67”
  • Length: 23.00 ft
  • Open-air length: 15.00 ft


Hammermill Shredder

  • FRZB-1721 Hammermill Shredder
  • Internal Width: 67"
  • Hammers Weight: 230lbs
  • Replaceable grates
  • Equipped with anvils
  • Rotor hammer swing diameter: 82"
  • Raiseable rotor with the upper frame
  • Hydraulically operated ejection gate for un-shreddables
  • Driven by driveshaft (cardan shaft)


Hammermills Shredder Discharge Conveyor


  • Reinforced rubber belt conveyor
  • Width: 47"
  • Length: 18.00 ft
  • Discharge height: 8.50 ft
  • Driven by hydraulic motor


Engine

  • 220 bHP diesel engine

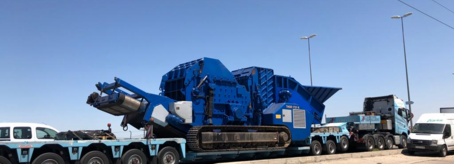

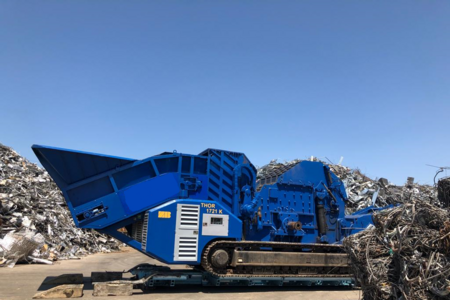

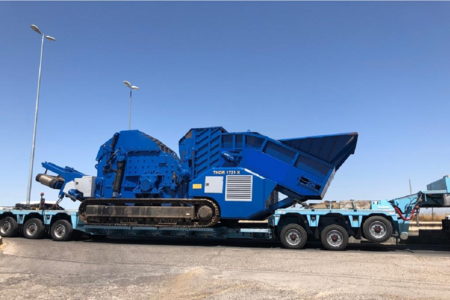

Mobile Hammermill Shredder: THOR 1721 K
